Cup Lock System
Cuplok is galvanized multi-purpose steel scaffold system that offers access and support to vertical loads. They have a unique circular node point that allows up to 4 components to be connected to one fastening action. Cuplock is ideal for a wide range of applications including the scaffolds like oil tanks, boilers, shipbuilding, industrial maintenance, staircase access and more.
BSL which earlier was SGB ( India) Ltd in 1985, is the front runner in the Industry. Our Cuplok System tested as per EN 12811 at Oxford University England.
**************************
Cuplok Verticals/Standards
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLV10 | 1001.05 | 1'7" Toplock Vertical | 0.50 | 19.00 | 9.60 | 3.50 |
TLV33 | 1001.1 | 3' 3" Toplock Vertical | 1.00 | 39.00 | 13.60 | 6.20 |
TLV411 | 1001.15 | 4'11" Toplock Vertical | 1.50 | 59.00 | 19.10 | 8.70 |
TLV66 | 1001.2 | 6'6" Toplock Vertical | 2.00 | 78.00 | 25.00 | 11.40 |
TLV82 | 1001.25 | 8'2" Toplock Vertical | 2.50 | 98.00 | 31.40 | 14.20 |
TLV910 | 1001.3 | 9'10" Toplock Vertical | 3.00 | 118.00 | 36.40 | 16.50 |
Cuplok Horizontals/Ledger
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLH27 | 1002.79 | 2'-7" Top Lock Horizontal | 0.79 | 31 | 7.00 | 3.20 |
TLH211 | 1002.9 | 2'-11" TopLock Horizontal | 0.9 | 35.4 | 8.20 | 3.70 |
TLH30 | 1002.91 | 3' Top Lock Horizontal | 0.91 | 36 | 8.40 | 3.80 |
TLH36 | 1002.107 | 3' 6" Top Lock Horizontal | 1.07 | 42 | 9.40 | 4.30 |
TLH40 | 1002.122 | 4' Top Lock Horizontal | 1.22 | 48 | 10.60 | 4.80 |
TLH41 | 1002.125 | 4'-1" Top Lock Horizontal | 1.25 | 59 | 10.80 | 4.90 |
TLH411 | 1002.15 | 4'-11" Top Lock Horizontal | 1.5 | 49.2 | 12.80 | 5.80 |
TLH50 | 1002.152 | 5' Top Lock Horizontal | 1.52 | 60 | 13.00 | 5.90 |
TLH511 | 1002.18 | 5'-11" Top Lock Horizontal | 1.8 | 70.9 | 15.40 | 7.00 |
TLH60 | 1002.183 | 6' Top Lock Horizontal | 1.83 | 72 | 15.40 | 7.00 |
TLH70 | 1002.213 | 7' Top Lock Horizontal | 2.13 | 84 | 18.00 | 8.20 |
TLH80 | 1002.244 | 8' Top Lock Horizontal | 2.44 | 96 | 21.00 | 9.50 |
TLH82 | 1002.25 | 8'-2" Top Lock Horizontal | 2.5 | 98.4 | 21.20 | 9.60 |
TLH90 | 102.274 | 9' Top Lock Horizontal | 2.74 | 108.00 | 23.00 | 10.40 |
TLH100 | 1002.305 | 10' Top Lock Horizontal | 3.05 | 120 | 25.80 | 11.70 |
Cuplok Omega Transom
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLV10 | 1003.09 | 0.9 Omega Transom | 0.90 | 35.42 | 4.90 | 10.80 |
TLV33 | 1003.13 | 1.3 Omega Transom | 1.30 | 51.17 | 7.00 | 15.43 |
TLV411 | 1003.18 | 1.8 Omega Transom | 1.80 | 70.85 | 9.82 | 21.65 |
TLV66 | 1003.25 | 2.5 Omega Transom | 2.50 | 98.40 | 13.50 | 27.67 |
Cuplok Diagonal Face Braces
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLFB80 | 1011.244 | 8' Face Brace Swivel | 2.44 | 96.06 | 20.30 | 9.30 |
TLFB82 | 1011.25 | 8'-2' Face Brace Swivel | 2.50 | 98.43 | 20.90 | 9.50 |
TLFB90 | 1011.274 | 9' Face Brace Swivel | 2.74 | 107.87 | 22.00 | 10.00 |
TLFB100 | 1011.305 | 10' Face Brace Swivel | 3.05 | 120.08 | 23.40 | 10.60 |
Cuplok Swivel Clamp Braces
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLCB82 | 1014.25 | 8'-2" Clamp Brace Swivel | 2.50 | 98.43 | 25.4 | 11.50 |
TLCB86 | 1014.257 | 8'-6' Clamp Brace Swivel | 2.57 | 101.18 | 25.87 | 11.70 |
TLCB90 | 1014.274 | 9' Clamp Brace Swivel | 2.74 | 107.87 | 26.84 | 12.20 |
TLCB100 | 1014.305 | 10' Clamp Brace Swivel | 3.05 | 120.08 | 28.71 | 13.00 |
Cuplok Board Brackets
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLBB10 | 1008.1 | 1' Board Bracket | 0.29 | 12.00 | 3.30 | 1.50 |
TLBB110 | 1008.2 | 2' Board Bracket | 0.57 | 24.00 | 12.60 | 5.70 |
TLBB27 | 1008.3 | 3' Board Bracket | 0.80 | 36.00 | 17.00 | 7.70 |
Cuplok Omega Hopup Brackets
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLBB10 | 1004.1 | 1' Board Bracket | 0.29 | 12.00 | 3.30 | 1.50 |
TLBB110 | 1004.2 | 2' Board Bracket | 0.57 | 24.00 | 12.60 | 5.70 |
TLBB27 | 1004.3 | 3' Board Bracket | 0.80 | 36.00 | 17.00 | 7.70 |
Cuplok Intermediate Transom
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLIT09 | 1005.09 | 0.9 Intermediate Transom | 0.90 | 35.43 | 10.25 | 4.65 |
TLIT12 | 1005.12 | 1.2 Intermediate Transom | 1.20 | 47.24 | 15.37 | 6.97 |
TLIT13 | 1005.13 | 1.3 Intermediate Transom | 1.30 | 51.18 | 16.27 | 7.38 |
TLIT18 | 1005.18 | 1.8 Intermediate Transom | 1.80 | 70.87 | 20.11 | 9.12 |
Cuplok Inside Board Transom
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLIBT09 | 1007.1 | 1 Board Intermediate Transom | 1.62 | 63.78 | 20.40 | 9.25 |
TLIBT12 | 1007.2 | 2 Board Intermediate Transom | 1.93 | 75.98 | 23.37 | 10.60 |
TLIBT13 | 1007.3 | 3 Board Intermediate Transom | 2.20 | 86.61 | 25.18 | 11.42 |
Cuplok Horizontal Truss
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLHT10 | 1006.1 | 10' Bridging Truss | 3.05 | 120.00 | 66.15 | 30.00 |
TLHT12 | 1006.12 | 12' Bridging Truss | 3.66 | 144.00 | 79.38 | 36.00 |
TLHT16 | 1006.16 | 16' Bridging Truss | 4.88 | 192.00 | 105.29 | 47.75 |
TLHT18 | 1006.18 | 18' Bridging Truss | 5.49 | 216.00 | 114.99 | 52.15 |
TLHT21 | 1006.21 | 21' Bridging Truss | 6.40 | 252.00 | 131.75 | 59.75 |
Cuplok Cantilever Frames
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLCF10 | 1009.1 | 1.0Mx1.5M Cantilever Frame | 1.0 | 39 | 41.7 | 18.9 |
TLCF12 | 1009.12 | 1.2Mx1.5M Cantilver Frame | 1.2 | 47.24 | 44.3 | 20.1 |
TLCF15 | 1009.15 | 1.5Mx1.5M Cantilever Frame | 1.5 | 49.2 | 47.6 | 21.6 |
Cuplok Beam Bracket
Pro Code | Drawing | Description | Length | Weight |
TLBB | 1010 | Beam Bracket | 1.5M | 5.2Kg |
Cuplok Deck Adopter
Code | Drawing | Description | Length | Weight |
TLDA | 1015 | 25" Deck Adapter | 0.64M | 5.1Kg |
Cuplok Return Device
Code | Drawing | Description | Length | Weight |
TLRD | 1016 | 6" Deck Adopter | 150mm | 1.3Kg |
Cuplok Spigot
Code | Drawing | Description | Length | Weight |
TLS | 1013 | 12" Spigot | 300mm | 2kg |
Cuplok Pig Tail Pin
Code | Drawing | Description |
TLP | 1012 | Spigot Pin |
Cuplok Spigot Clamp
Code | Drawing | Description | Length | Weight |
TLSC | 1021 | Support Clamp on Leg | 2.8kg |
Cuplok Staircase
Code | Drawing | Description | Length | Weight |
TLS1815 | 1017 | 1.8mx1.5M Stairways | 1.5M | 55kg |
Cuplok Stair Stringers & Stair Treads
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
TLSS70 | 1022.70 | 7' Cuplok Stair Stringer | 2.14 | 84.00 | 65.93 | 29.90 |
TLSS80 | 1022.80 | 8' Cuplok Stair Stringer | 2.44 | 96.00 | 68.36 | 31.00 |
TLSS82 | 1022.82 | 8'2" Cuplok Stair Stringer | 2.50 | 98.00 | 70.56 | 32.00 |
TLST36 | 1022T.36 | 3'6" Cuplok Stair Tread | 1.06 | 42.00 | 13.45 | 6.10 |
TLST40 | 1022T.40 | 4' Cuplok Stair Tread | 1.22 | 48.00 | 15.21 | 6.90 |

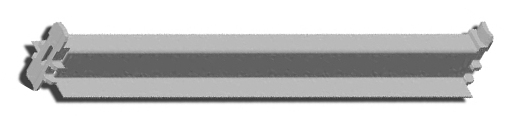

Steel Plank with Hooks
Product Code | Description | Effective Length | Unit Weight | |||
Code | Drawing | Meters | Inch | Lb | Kg | |
SSP30 | 12003.30 | 3' x 9" Steel Plank w/Hooks | 0.91 | 36 | 15.70 | 7.10 |
SSP36 | 12003.36 | 3'6" x 9" Steel Plank w/Hooks | 1.07 | 42 | 17.10 | 7.70 |
SSP4 | 12003.40 | 4' x 9" Steel Plank w/Hooks | 1.22 | 48 | 19.00 | 8.60 |
SSP5 | 12003.50 | 5' x 9" Steel Plank w/Hooks | 1.52 | 60 | 23.20 | 10.50 |
SSP6 | 12003.60 | 6' x 9" Steel Plank w/Hooks | 1.83 | 72 | 26.50 | 12.00 |
SSP7 | 12003.70 | 7' x 9" Steel Plank w/Hooks | 2.13 | 84 | 31.00 | 14.20 |
SSP8 | 12003.80 | 8' x 9" Steel Plank w/Hooks | 2.44 | 96 | 35.40 | 16.10 |
SSP9 | 12003.90 | 9' x 9" Steel Plank w/Hooks | 2.74 | 108 | 39.80 | 18.10 |
SSP10 | 12003.10 | 10' x 9" Steel Plank w/Hooks | 3.05 | 120 | 42.90 | 19.50 |
